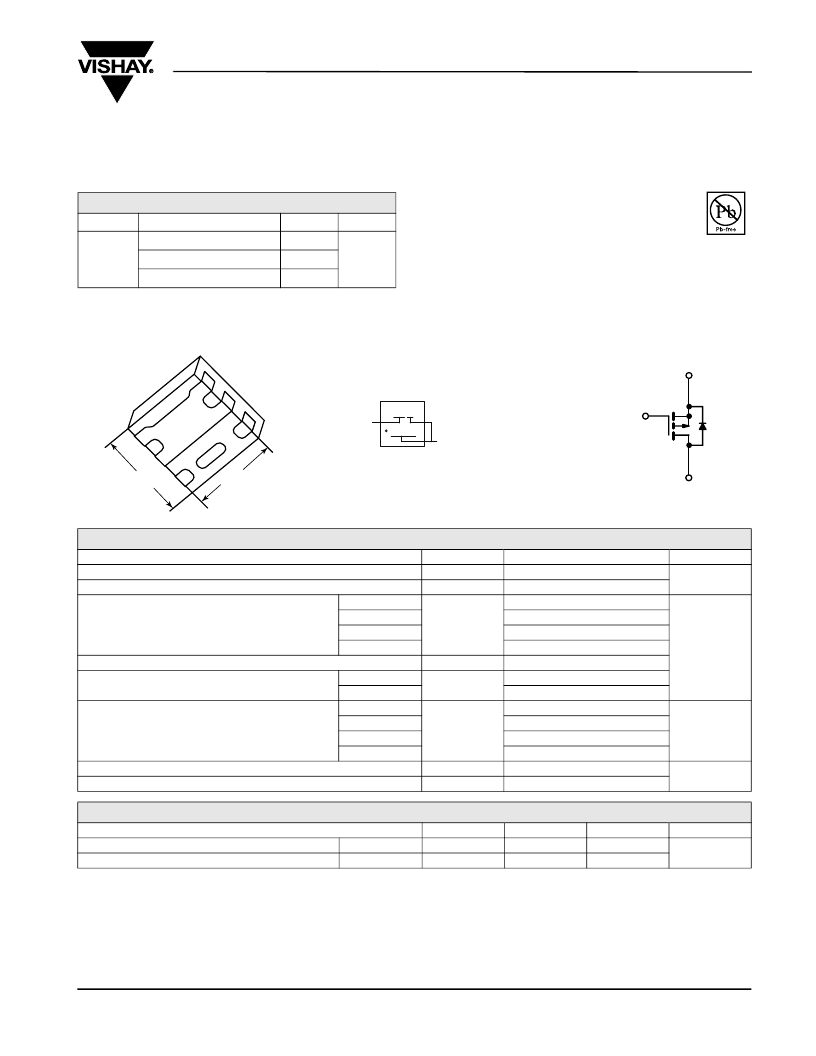

New Product

SiA443DJ

Vishay Siliconix

P-Channel 20-V (D-S) MOSFET

PRODUCT SUMMARY

FEATURES

V DS (V)

- 20

R DS(on) ( Ω )

0.045 at V GS = - 4.5 V

0.063 at V GS = - 2.5 V

0.088 at V GS = - 1.8 V

I D (A)

- 9 a

-9

Q g (Typ)

9 nC

? Halogen-free

? TrenchFET ? Power MOSFET

? New Thermally Enhanced PowerPAK ?

SC-70 Package

- Small Footprint Area

RoHS

COMPLIANT

- Low On-Resistance

APPLICATIONS

PowerPAK SC-70-6L-Single

? Load Switch, PA Switch and Battery Switch for Portable

Devices

Marking Code

Part # code

BCX

XXX

Lot Traceability

and Date code

2.05 mm

Orderin g Information: SiA443DJ-T1-GE3 (Lead (P b )-free and Halogen-free)

ABSOLUTE MAXIMUM RATINGS T A = 25 °C, unless otherwise noted

P-Channel MOSFET

Parameter

Drain-Source Voltage

Gate-Source Voltage

T C = 25 °C

Symbol

V DS

V GS

Limit

- 20

±8

- 9 a

Unit

Continuous Drain Current (T J = 150 °C)

Pulsed Drain Current

Continuous Source-Drain Diode Current

T C = 70 °C

T A = 25 °C

T A = 70 °C

T C = 25 °C

T A = 25 °C

T C = 25 °C

I D

I DM

I S

- 9 a

- 6.7 b, c

- 5.4 b, c

- 20

- 9 a

- 2.7 b, c

Maximum Power Dissipation

T C = 70 °C

T A = 25 °C

P D

9.8

3.3 b, c

T A = 70 °C

2.1 b, c

Operating Junction and Storage Temperature Range

Soldering Recommendations (Peak Temperature) d, e

T J , T stg

- 55 to 150

260

°C

THERMAL RESISTANCE RATINGS

Parameter Symbol Typical Maximum Unit

Maximum Junction-to-Ambient b, f t ≤ 5s

Maximum Junction-to-Case (Drain) Steady State

R thJA

R thJC

30 38

6.5 8.1

°C/W

Notes:

a. Package limited.

b. Surface Mounted on 1" x 1" FR4 board.

c. t = 5 s.

d. See Solder Profile ( h ttp://www.vishay.com/ppg?73257 ). The PowerPAK SC-70 is a leadless package. The end of the lead terminal is exposed

copper (not plated) as a result of the singulation process in manufacturing. A solder fillet at the exposed copper tip cannot be guaranteed and

is not required to ensure adequate bottom side solder interconnection.

e. Rework Conditions: manual soldering with a soldering iron is not recommended for leadless components.

f. Maximum under Steady State conditions is 80 °C/W.

Document Number: 74474

S-80435-Rev. B, 03-Mar-08

www.vishay.com
